Solarco Boxmatic Automatic

Clickable Image

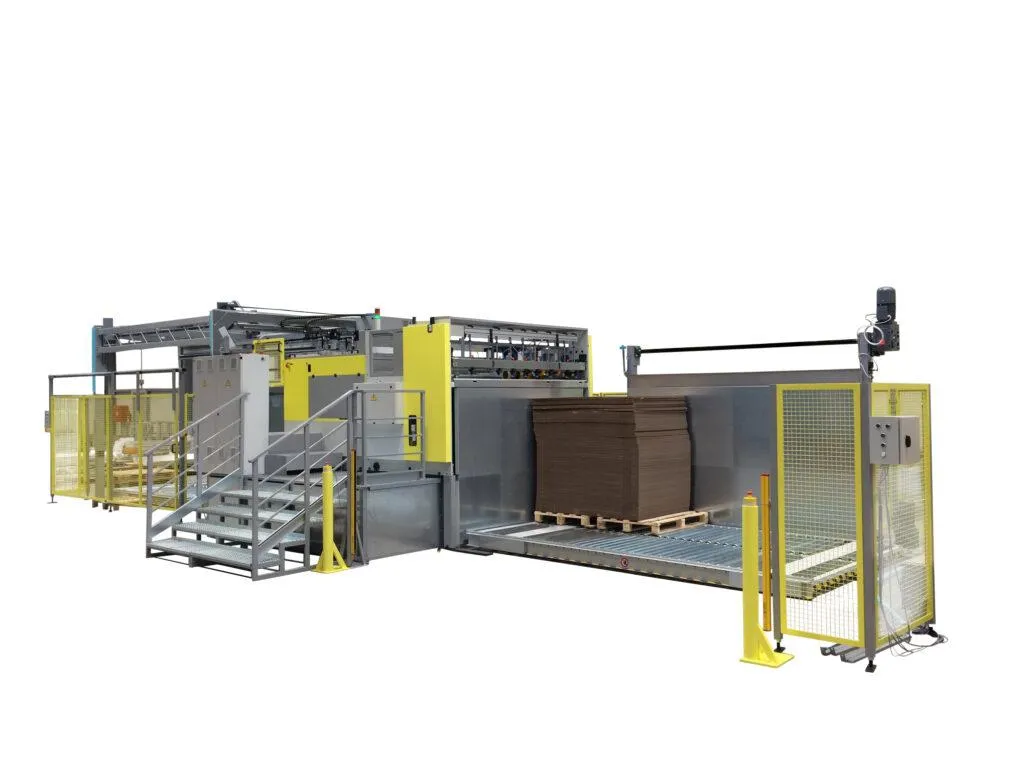

Short to Middle Run Boxmaker designed for the professional and effective production of various box styles, sizes and board grades. Single up to Triple Wall Corrugated: RSCs, HSCs, 5PFs, OPFs, Telescopic Trays, Partitions, Pads and many others including individual designs without any special tooling made fast and easy. Jumbo with multi out option, small space requirement and fast machine setup time. All in One package and done in one pass - slotted, both direction scored and printed boxes with additional die-cutting ready for gluing or stitching.

Automatic Feeder Option

Auto-Feed to improve operational efficiency. Automatic section feeder squares and feeds corrugated boards with length up to 240 inches. Powered Conveyor Option for the Lift Tables.

Easy Operator Programming

Machine Programming and Parameter Settings are Quick and Easy Thanks to the PLC Touch Panel.

Only Basic Information Must be Inserted, the Rest is Calculated by the Program Itself.

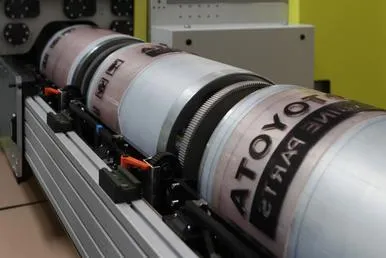

Servo Printing Units

All Boxmatic Machines are Equipped with Three Smart Flexo Print Units.

Multiple Printing Plates on One Print Cylinder, Apex Anilox Rolls & Servo Positioning.

Flat Bed Style Die-Cut

Increased machine flexibility with additional Die-Cut for hand holes, corner cuts, perforations, and drop panels. Multiple additional box cut outs in one pass.

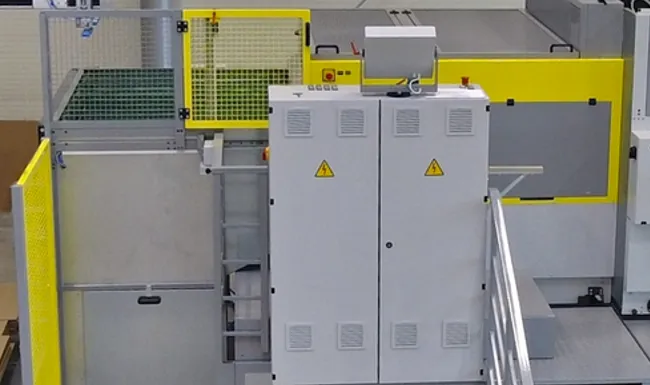

Waste Bin

On Output, machine is equipped with Unloading Waste Bin.

Automatic stacker picks up boxes from Waste Bin.

Automatic Unloading Stacker

Machine can be equipped with Automatic Unloader Stacker.

Automatic Stacking for Multi Out Production. Powered conveyor options for lift table.
