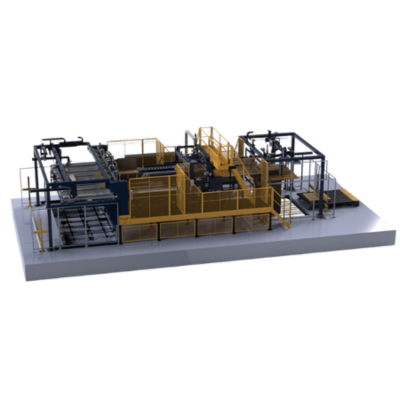

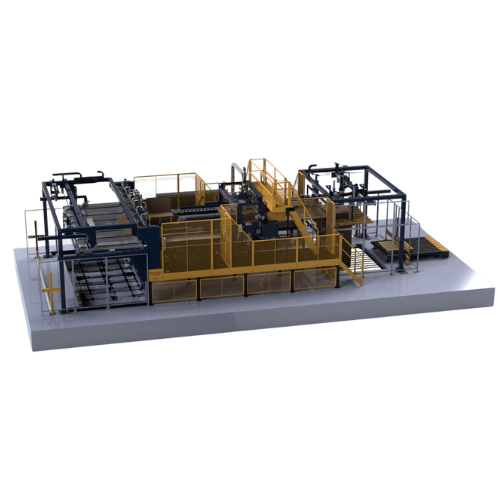

PAC 48/55 Fully Automatic Stitcher-Gluer
Fully-Automatic Stitcher-Gluer for One Piece Boxes, Corrugated Board, Single, Double and Triple Wall Board
For Single Piece Boxes, this Fully Automatic Stitcher-Gluer runs at the dynamic speed of 1200 boxes per hour and with only 1 operator and boasts a short 15 minute automated changeover time. The PAC 48 or PAC 55 accommodates single wall, double wall and triple wall corrugated board and can stitch up to 1400 stitches/minute). This Stitcher can handle infeed flat boards up to 217 inches.
Feeder Elevator
Auto Pile Entry
Auto Pile Centering

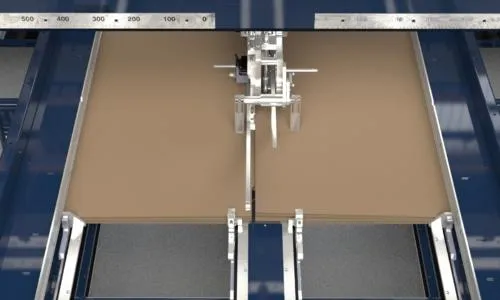

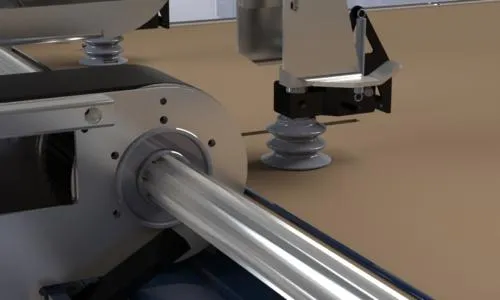

Fully Automatic Vacuum Feeder
With Heavy Duty Sandwich Style Feeder Clamps and Feeds to Squaring Dogs onto the Material Holding it Square During the Stitching and Gluing Process.

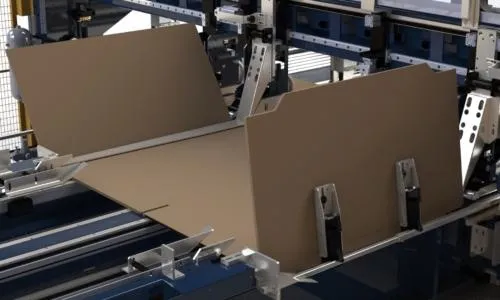

Static Folding Section
Servo Static Folding with Motorized Adjustments.
Patented Squaring Section of Folder Delivery.

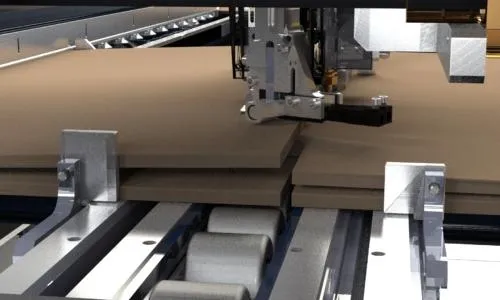

Squaring Dogs
Squaring Brackets on the Trail Edge of the Box to Keep the Box Square During the Stitching/Gluing Process.
Lead Edge Squaring Dogs
Brackets on the Lead Edge and Trail Edge to Sustain Squareness Throughout the Process.

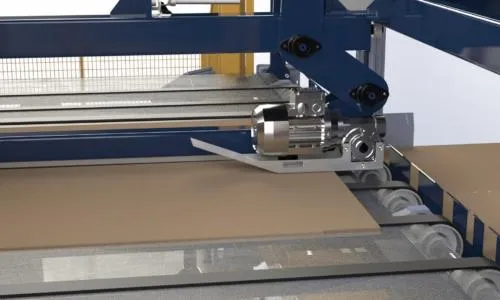

Ejector and Compression Section
Top Belt Automatically Aligns with the Glue Tab During Box Ejection.
Down Stacker with Non-Stop Function
After the Load Ejects, Forks Extend Out to Keep the Machine in Production to Boost Throughput!
